756338-BUTTERFLY VALVE DIN CAST IRON, WAFER TYPE #5720 250MM
 IMPA: 756338

756338-BUTTERFLY VALVE DIN CAST IRON, WAFER TYPE #5720 250MM

BUTTERFLY VALVE LEVER. WAFER 250 MM 16 BAR CAST IRON 66 MM SS 304 NBR

For IMPA code 756338 with official discription 756338-BUTTERFLY VALVE DIN CAST IRON, WAFER TYPE #5720 250MM we supply code our item description which is sold per PIECE and weights 28.

IMPA code number 756338 is available from stock and can be shipped out within 24/hrs to any agent or warehouse in the world. We have 15.000 different IMPA articles in out own stock and IMPA 756338-BUTTERFLY VALVE DIN CAST IRON, WAFER TYPE #5720 250MM is ready for shipping. Just order online, pay by different ways in a secure eviroment and we ship out your IMPA ( 756338 ) the same day!

Product specification

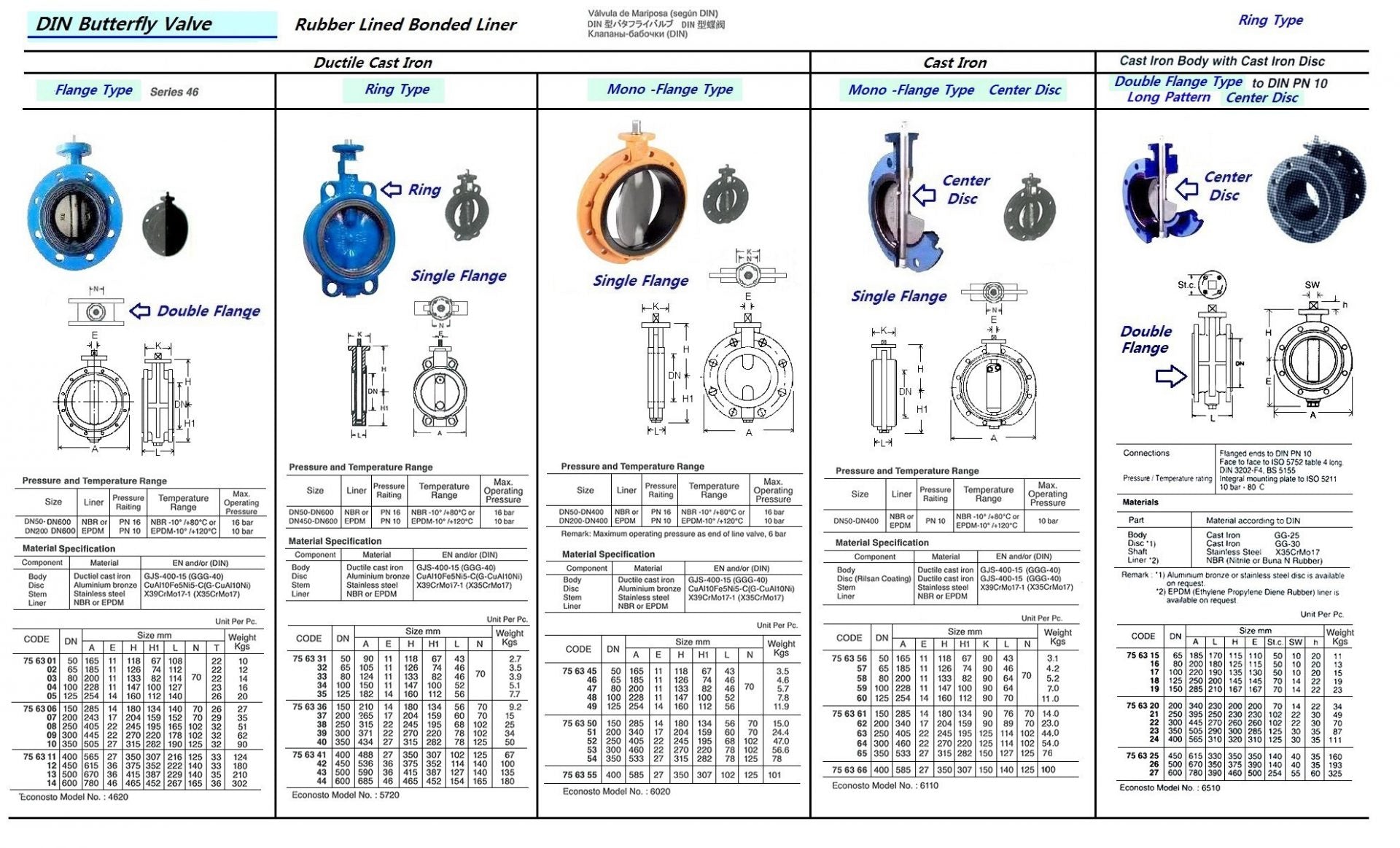

<p>Ductile iron butterfly valve, wafer type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with centering holes for easy pipe alignment is suitable for mounting between flanges according to DIN PN 10/16 and ASME 150#. Face to face dimensions are according to ISO5752/EN558 basic series 20, API609, DIN3202 K1 and BS5155. For easy mounting of both manual and automatic actuators the valve is executed with a topflange according to the ISO5211 standard. Further applications of series 57 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 16 bar (PN16 execution). Features: ? Connections: Wafer type ? Body material: Cast iron, nodular ? Valve butterfly material: Bronze ? Operation: None</p>
HS Code

PIECE
