756309-BUTTERFLY VALVE DIN CAST IRON, PN10 SHORT #4620 300MM
 IMPA: 756309

756309-BUTTERFLY VALVE DIN CAST IRON, PN10 SHORT #4620 300MM

BUTTERFLY VALVE DOUBLE FLANGED WITH GEARBOX. 300 MM 10K NODULAIR CAST IRON 400 MM 78 MM 720F JIS SS 460 MM 25 MM 16 NBR

For IMPA code 756309 with official discription 756309-BUTTERFLY VALVE DIN CAST IRON, PN10 SHORT #4620 300MM we supply code our item description which is sold per PIECE and weights 78.

IMPA code number 756309 is available from stock and can be shipped out within 24/hrs to any agent or warehouse in the world. We have 15.000 different IMPA articles in out own stock and IMPA 756309-BUTTERFLY VALVE DIN CAST IRON, PN10 SHORT #4620 300MM is ready for shipping. Just order online, pay by different ways in a secure eviroment and we ship out your IMPA ( 756309 ) the same day!

Product specification

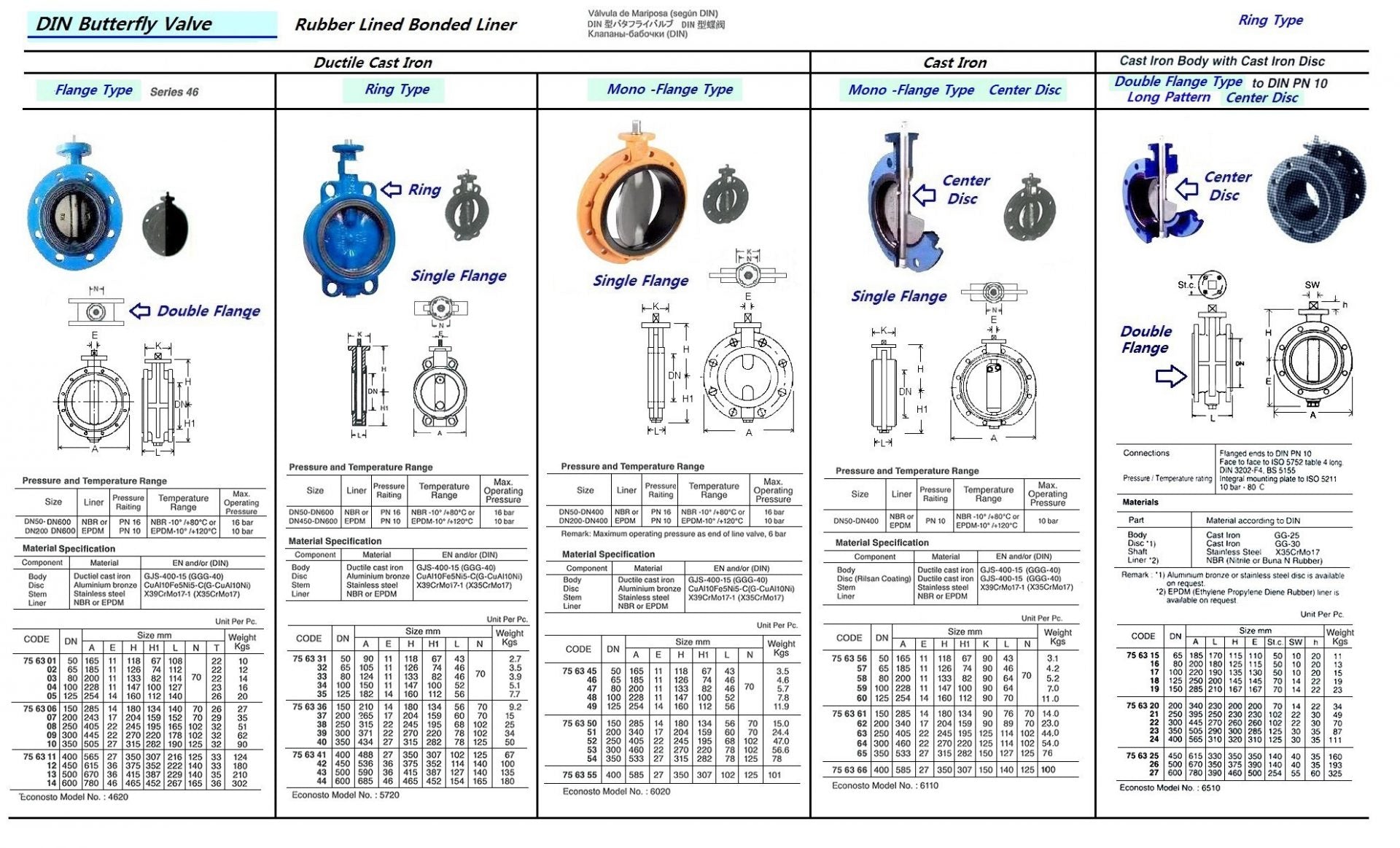

<p>Ductile cast iron butterfly valve, double-flanged type with centric disc, one piece shaft supported by bronze radial bearings, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The double flanged body is suitable for mounting between flanges acc. to DIN PN10 or PN16. Face to face dimensions are acc. to ISO5752 /EN558 basic series 13, DIN3202 F16 and BS5155. Valve is also suitable for end of line applications. For easy mounting of both manual and automatic actuators the valve is executed with a topflange according to the ISO5211 standard. Further applications of series 46 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 16 bar. Features: ? Connections; Flange ? Body material; Cast iron, nodular ? Valve butterfly material; Bronze ? Operation; None</p>
HS Code

PIECE
