755609-GATE VALVE DIN CAST IRON, FLANGED PN10 #292 250MM
 IMPA: 755609

755609-GATE VALVE DIN CAST IRON, FLANGED PN10 #292 250MM

GATE VALVE NON RISING SPINDLE. 250 MM PN10 CAST IRON 350 MM 250 MM DIN 395 MM 23 MM 12

For IMPA code 755609 with official discription 755609-GATE VALVE DIN CAST IRON, FLANGED PN10 #292 250MM we supply code our item description which is sold per PIECE and weights 119.

IMPA code number 755609 is available from stock and can be shipped out within 24/hrs to any agent or warehouse in the world. We have 15.000 different IMPA articles in out own stock and IMPA 755609-GATE VALVE DIN CAST IRON, FLANGED PN10 #292 250MM is ready for shipping. Just order online, pay by different ways in a secure eviroment and we ship out your IMPA ( 755609 ) the same day!

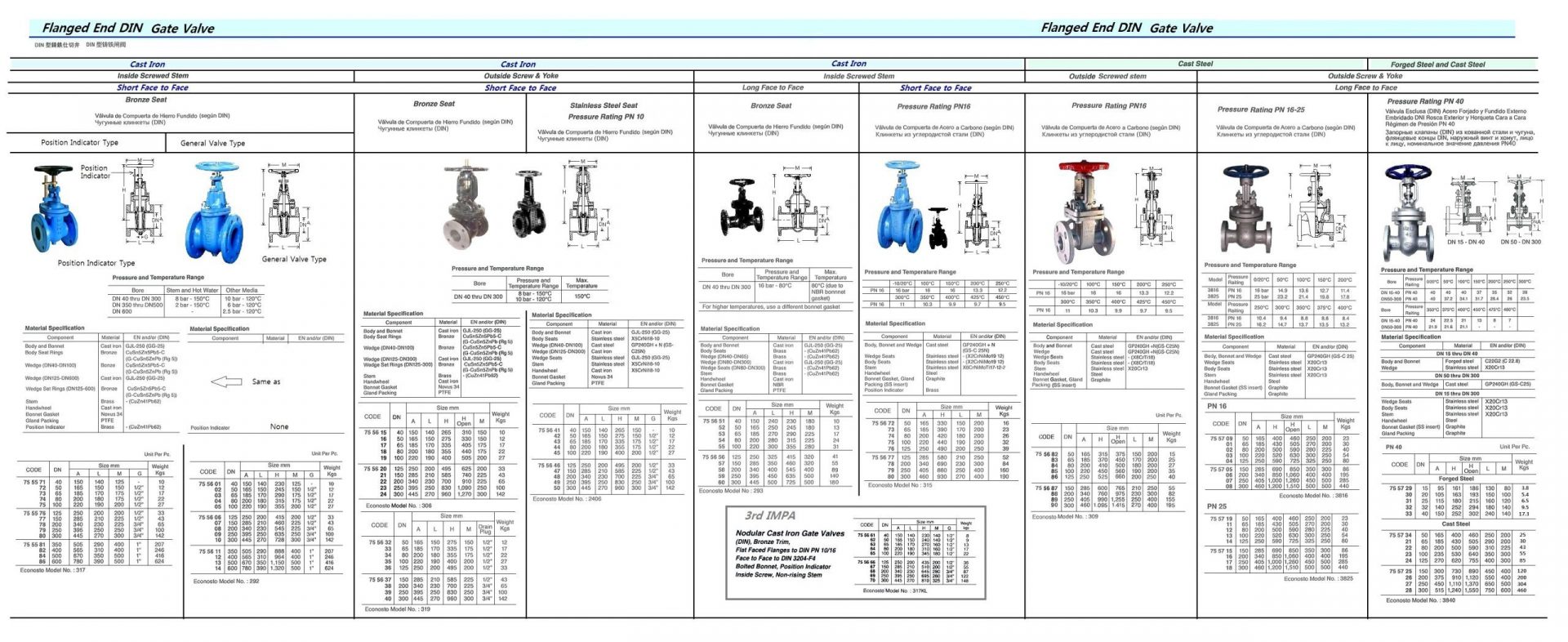

Product specification

<p>Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, seawater, lubricating oil steam etc.</p>
HS Code

PIECE
