755580-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 300
 IMPA: 755580

755580-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 300

GATE VALVE NON RISING SPINDLE. 300 MM PN10 CAST IRON 410 MM 270 MM DIN 445 MM 23 MM 12

For IMPA code 755580 with official discription 755580-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 300 we supply code our item description which is sold per PIECE and weights 155.

IMPA code number 755580 is available from stock and can be shipped out within 24/hrs to any agent or warehouse in the world. We have 15.000 different IMPA articles in out own stock and IMPA 755580-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 300 is ready for shipping. Just order online, pay by different ways in a secure eviroment and we ship out your IMPA ( 755580 ) the same day!

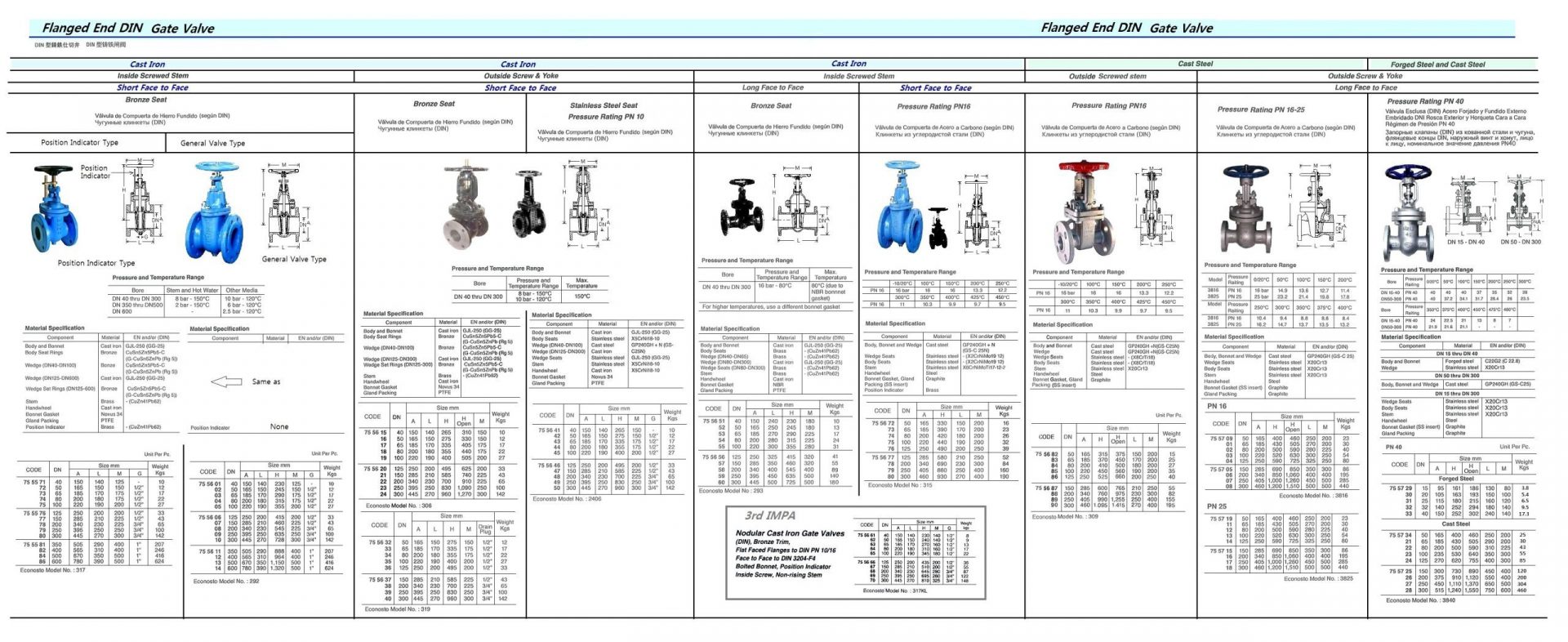

Product specification

<p>Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.</p>
HS Code

PIECE
