755578-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 200
 IMPA: 755578

755578-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 200

GATE VALVE NON RISING SPINDLE. 200 MM PN10 CAST IRON 295 MM 225 MM DIN 340 MM 23 MM 8

For IMPA code 755578 with official discription 755578-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 200 we supply code our item description which is sold per PIECE and weights 81.

IMPA code number 755578 is available from stock and can be shipped out within 24/hrs to any agent or warehouse in the world. We have 15.000 different IMPA articles in out own stock and IMPA 755578-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 200 is ready for shipping. Just order online, pay by different ways in a secure eviroment and we ship out your IMPA ( 755578 ) the same day!

Product specification

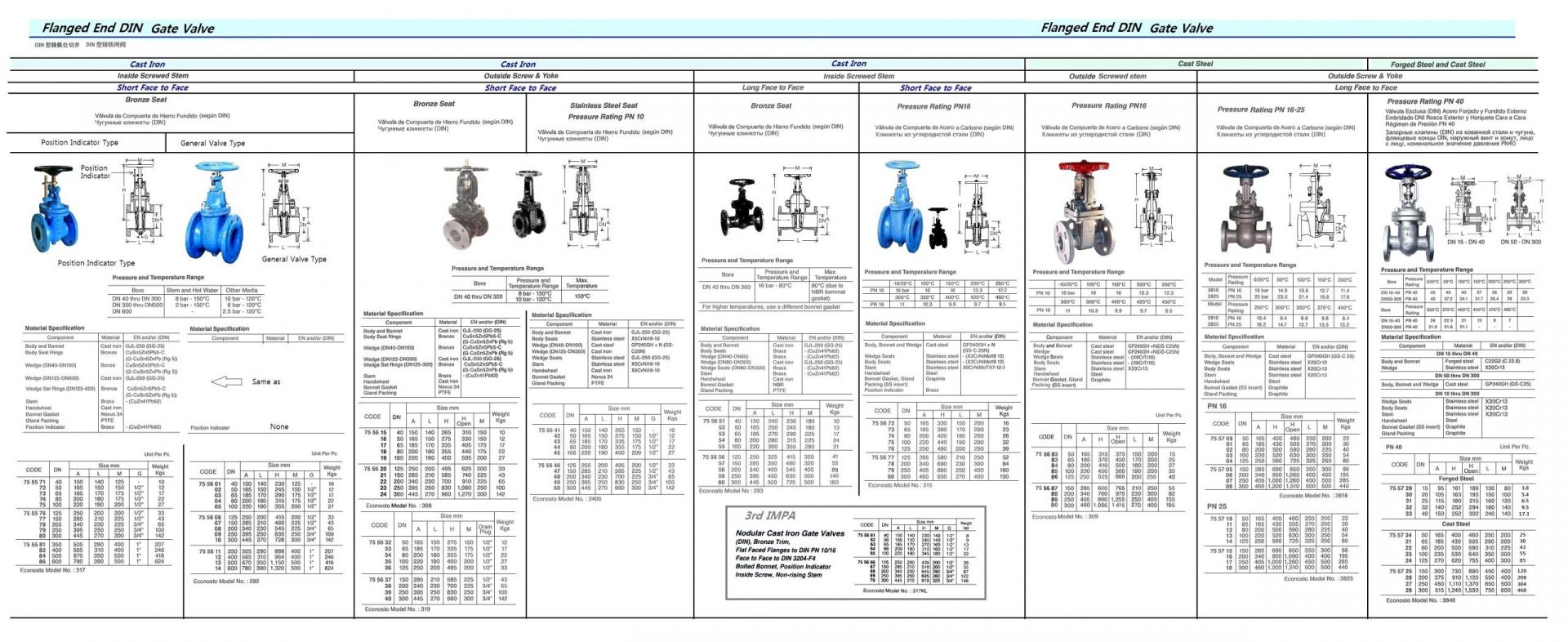

<p>Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.</p>
HS Code

PIECE
