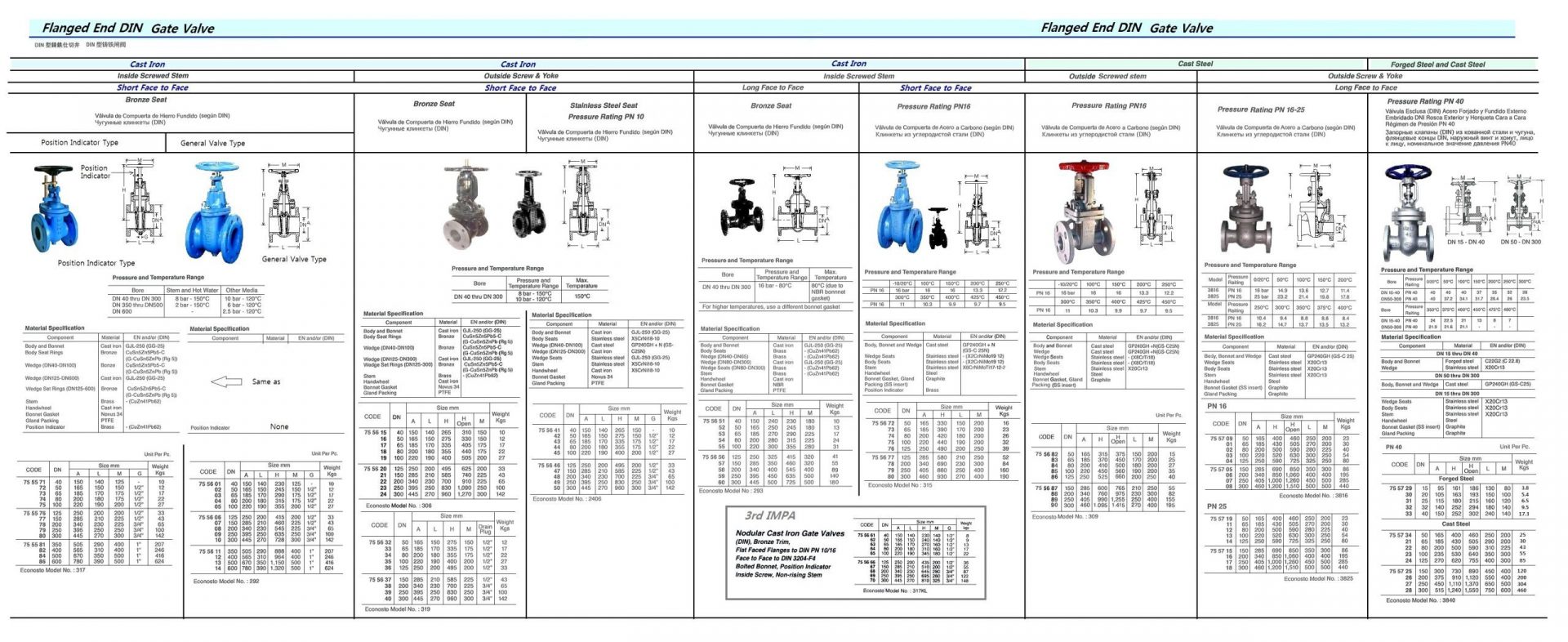

755576-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 125
 IMPA: 755576

755576-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 125

GATE VALVE NON RISING SPINDLE. 125 MM PN10 CAST IRON 210 MM 200 MM DIN 250 MM 18 MM 8

For IMPA code 755576 with official discription 755576-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 125 we supply code our item description which is sold per PIECE and weights 45.

IMPA code number 755576 is available from stock and can be shipped out within 24/hrs to any agent or warehouse in the world. We have 15.000 different IMPA articles in out own stock and IMPA 755576-GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 125 is ready for shipping. Just order online, pay by different ways in a secure eviroment and we ship out your IMPA ( 755576 ) the same day!

Product specification

<p>Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.</p>
